Sandvik Coromant

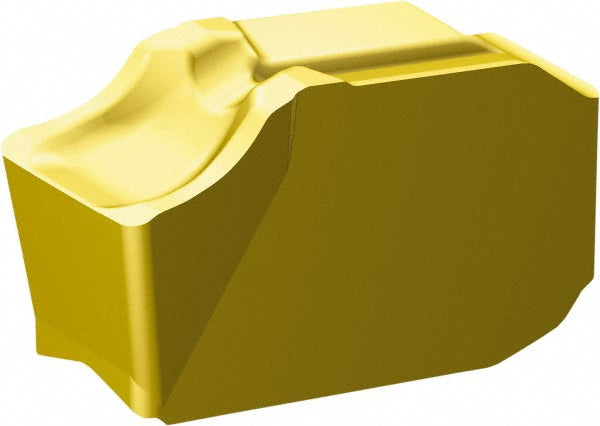

Solid Carbide Insert, Grade 1135, TiCN/Al2O3/TiN - Sandvik Coromant 6398198
MFR# 6398198Cat# QD-NH-0400-0003-CR 1135Series CoroCut QD
$23.98List $30.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 6398198 is a solid carbide indexable insert, grade 1135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCR
Coating finishTiCN/Al2O3/TiN
Coating processPVD
Corner radius0.0118
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeH
Insert size codeH
Insert styleQD
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberQD-NH-0400-0003-CR 1135
Manufacturer grade1135
Overall length0.4724
Overall width0.1575
Relief angle7.00
