Sandvik Coromant

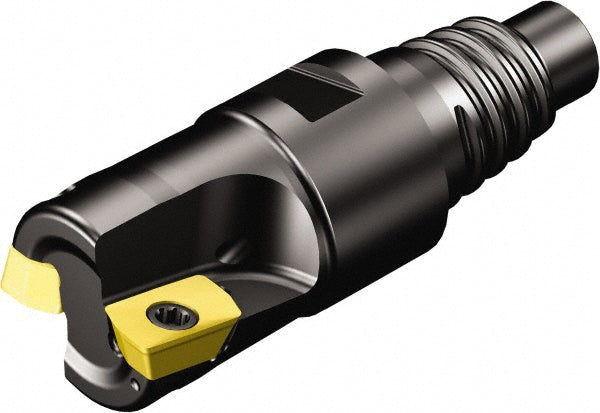

Indexable Milling Cutters - Sandvik Coromant 6416914
MFR# 6416914Series CoroMill 390
$544.06List $578.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6416914 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter0.9646
Compatible insert size codeR390-11..
Complete insert compatibilityR390-11..
Coolant throughYes
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.3940
Insert holding methodScrew Clamping
Lead angle90
Maximum cutting diameter in1
Maximum depth of cut0.3940
Number of cutter inserts4
Overall height1.3780
Toolholder materialSteel
