Sandvik Coromant

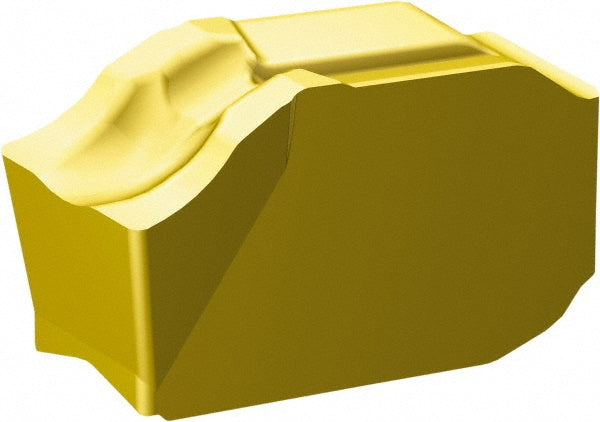

Solid Carbide Insert, Grade 1135, TiCN/Al2O3/TiN - Sandvik Coromant 6426504
MFR# 6426504Cat# QD-NG-0318-0002-CM 1135Series CoroCut QD
$22.53List $28.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 6426504 is a solid carbide indexable insert, grade 1135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCM
Coating finishTiCN/Al2O3/TiN
Coating processPVD
Corner radius0.0079
Cutting width in1/8
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeG
Insert size codeG
Insert styleQD
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberQD-NG-0318-0002-CM 1135
Manufacturer grade1135
Material grade1135
Overall length0.3937
Overall width0.1250
Relief angle7.00
