Sandvik Coromant
Solid Carbide Insert, Grade 1145, Oxide - Sandvik Coromant 6427392
MFR# 6427392Series CoroCut QD
$24.33List $31.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1145
MaterialSolid Carbide
CoatingOxide
Description

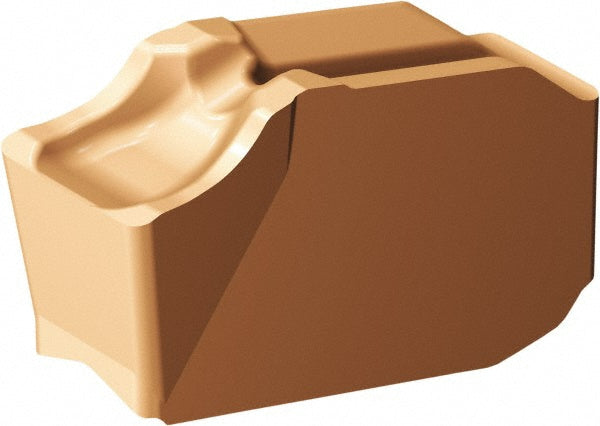

The Sandvik Coromant 6427392 is a solid carbide indexable insert, grade 1145, Oxide coated.
Specifications
ChipbreakerCR
Coating finishOxide
Coating processPVD
Corner radius0.0118
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeG
Insert size codeG
Insert styleQD
Manufacturers catalog number6427392
Manufacturer grade1145
Relief angle7.00
Width tolerance0.001969 (Inch)
