Sandvik Coromant
Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 6427400
MFR# 6427400Cat# QD-NG-0318-0002-CM 1125Series CoroCut QD
$22.53List $28.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description

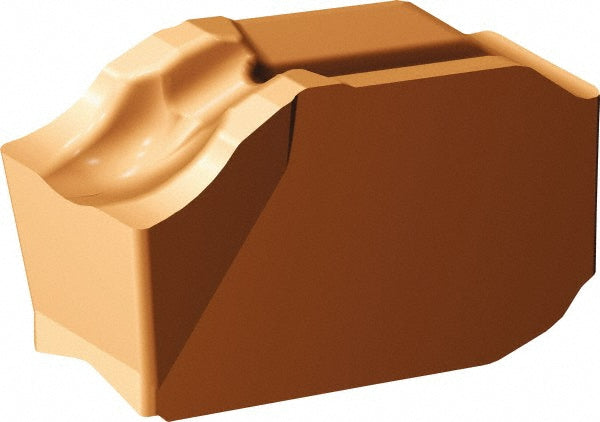

The Sandvik Coromant 6427400 is a solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
ChipbreakerCM
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0079
Cutting width in1/8
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeG
Insert size codeG
Insert styleQD
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberQD-NG-0318-0002-CM 1125
Manufacturer grade1125
Material grade1125
Overall length0.3937
Overall width0.1250
Relief angle7.00
