Sandvik Coromant
Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 6427481
MFR# 6427481Cat# QD-RH-0400-0502-CM 1125Series CoroCut QD
$23.98List $30.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description

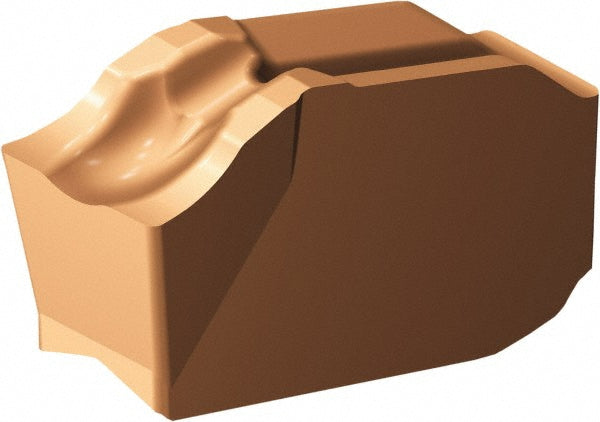

The Sandvik Coromant 6427481 is a solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
ChipbreakerCM
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0079
Cutting width0.1575
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeH
Insert size codeH
Insert styleQD
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog numberQD-RH-0400-0502-CM 1125
Manufacturer grade1125
Overall length0.4724
Overall width0.1575
Relief angle7.00
