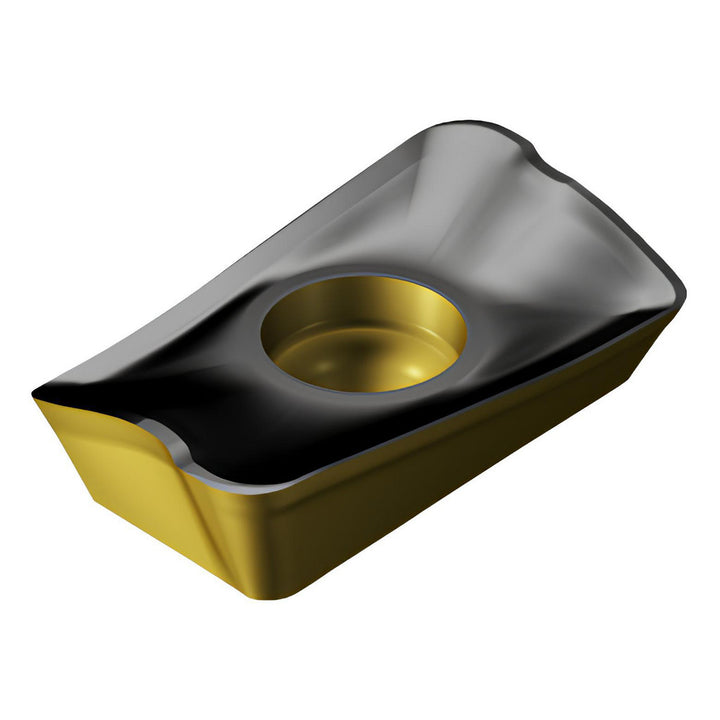

R390-17 04 31M-KM 3330 Solid Carbide Insert, Grade 3330, TiCN - Sandvik Coromant 6428065

Sandvik Coromant

R390-17 04 31M-KM 3330 Solid Carbide Insert, Grade 3330, TiCN - Sandvik Coromant 6428065

MFR# 6428065ISO/ANSI# R390-17 04 31M-KM 3330Cat# R390-17 04 31M-KM 3330Series R390

$26.70List $34.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade3330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 6428065 is a R390-17 04 31M-KM 3330 solid carbide indexable insert, grade 3330, TiCN coated. Suited for cast iron.

Specifications

Ansi codeR390-17 04 31M-KM 3330
Chip breakerKM
Coating finishTiCN
Coating processCVD
Corner radius0.1220
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170431
Insert styleR390
Iso codeR390-17 04 31M-KM 3330
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 31M-KM 3330
Manufacturer grade3330
Material applicationCast Iron
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle17
Relief angle19.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
