Sandvik Coromant

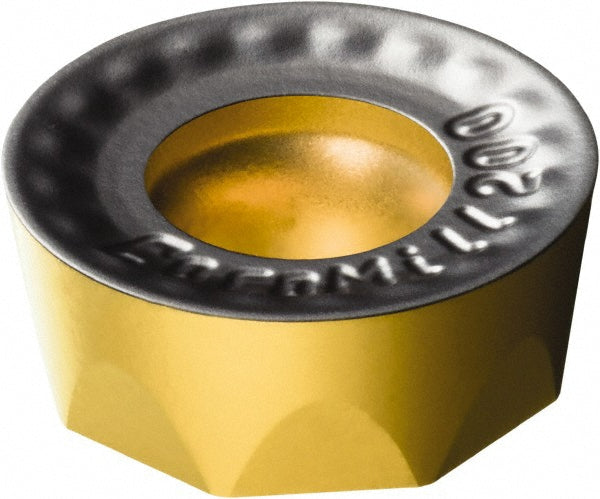

RCKT 19 06 00-KH 3330 Solid Carbide Insert, Grade 3330, TiCN - Sandvik Coromant 6428110
MFR# 6428110ISO/ANSI# RCKT 19 06 00-KH 3330Cat# RCKT 19 06 00-KH 3330Series RCKT
$30.15List $38.00
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeRound
Grade3330
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 6428110 is a RCKT 19 06 00-KH 3330 solid carbide indexable insert, grade 3330, TiCN coated. Suited for cast iron.
Specifications
Ansi codeRCKT 19 06 00-KH 3330
Chip breakerKH
Coating finishTiCN
Coating processCVD
Convex radius0.3750
Corner radius0.3750
Cutter series compatibilityRA200
Cutting edge styleRounded
Hole diameter0.2559
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size19
Insert size code190600
Insert styleRCKT
Iso codeRCKT 19 06 00-KH 3330
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog numberRCKT 19 06 00-KH 3330
Manufacturer grade3330
Material applicationCast Iron
Maximum depth of cut0.1098
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in3/4
