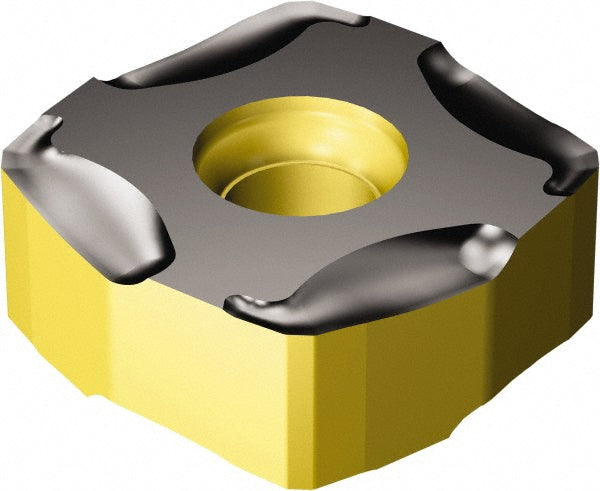

R365-1505ZNE-KM 3330 Solid Carbide Insert, Grade 3330, TiCN - Sandvik Coromant 6428123

Sandvik Coromant

R365-1505ZNE-KM 3330 Solid Carbide Insert, Grade 3330, TiCN - Sandvik Coromant 6428123

MFR# 6428123ISO/ANSI# R365-1505ZNE-KM 3330Cat# R365-1505ZNE-KM 3330Series R365

$35.20List $45.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade3330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 6428123 is a R365-1505ZNE-KM 3330 solid carbide indexable insert, grade 3330, TiCN coated. Suited for cast iron.

Specifications

Ansi codeR365-1505ZNE-KM 3330
Chip breakerKM
Coating finishTiCN
Coating processCVD
Corner radius0.0118
Cutter series compatibilityR365
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle0.5906
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1505
Insert styleR365
Iso codeR365-1505ZNE-KM 3330
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberR365-1505ZNE-KM 3330
Manufacturer grade3330
Material applicationCast Iron
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle1
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2228
Thickness range0.2200 to 0.2350
Width0.5906
