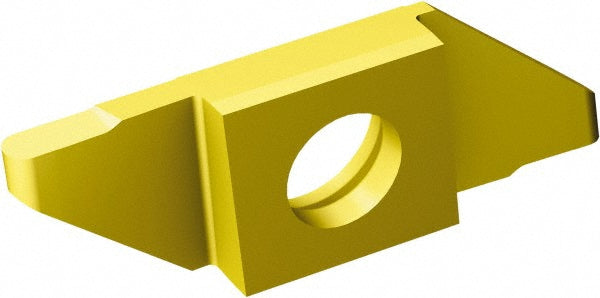

MAPL 3 080 1025 Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 6493370

Sandvik Coromant

MAPL 3 080 1025 Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 6493370

MFR# 6493370ISO/ANSI# MAPL 3 080 1025Series CoroCut XS

$70.22List $88.49 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/32
Grade1025
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 6493370 is a MAPL 3 080 1025 carbide indexable insert, grade 1025, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerMAP
Coating finishTiAlN
Coating processPVD
Corner radius0.0158
Included angle360
Inscribed circle in1/32
Insert handLeft Hand
Insert height0.1251
Insert holding methodClamp
Insert length0.1633
Insert materialCarbide
Insert size code080
Insert styleMAPL
Iso codeMAPL 3 080 1025
Manufacturer grade1025
Material gradeP25; M25; S25; K25
Maximum depth of cut0.1478
Msc manufacturer numberMAPL 3 080 1025
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle6
ShapeParallelogram
Side length0.1633
StandardsMAPL 3 080 1025; MAPL 3 080 1025
Thickness in1/8
Width in1/32
