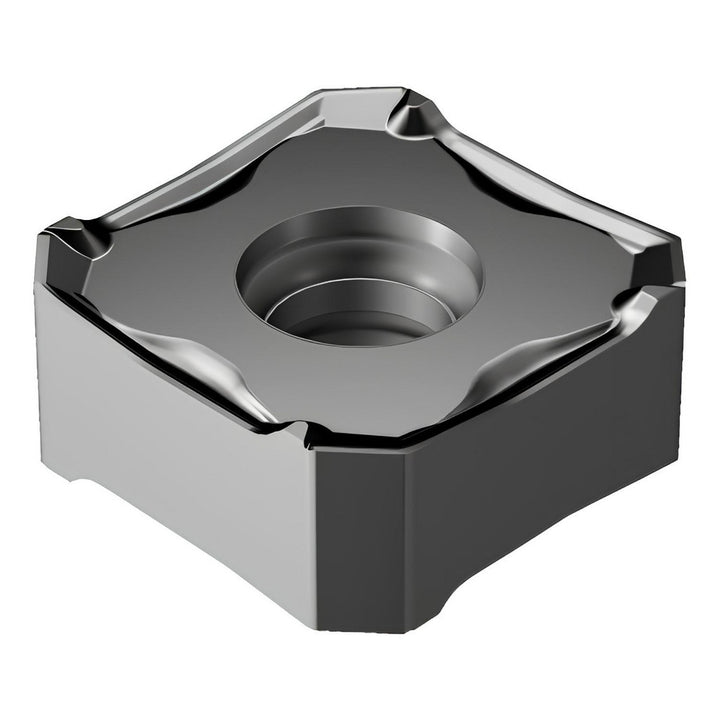

345R-13T5M-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 6532044
MFR# 6532044ISO/ANSI# 345R-13T5M-MM 1040Cat# 345R-13T5M-MM 1040Series 345
$27.42List $34.10
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
Grade1040
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 6532044 is a 345R-13T5M-MM 1040 solid carbide indexable insert, grade 1040, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi code345R-13T5M-MM 1040
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility345
Cutting edge styleCorner Rounded
Hole diameter0.1890
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code13T5
Insert style345
Iso code345R-13T5M-MM 1040
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog number345R-13T5M-MM 1040
Manufacturer grade1040
Material applicationSteel; Stainless Steel
Material gradeM30
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle24
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2146
Thickness range0.2000 to 0.2200
Width0.5118
