Solid Carbide Insert, Grade 4325, TiCN/Al2O3/TiN - Sandvik Coromant 6532086
MFR# 6532086Series CoroCut 1-2
$47.82List $61.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4325
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description

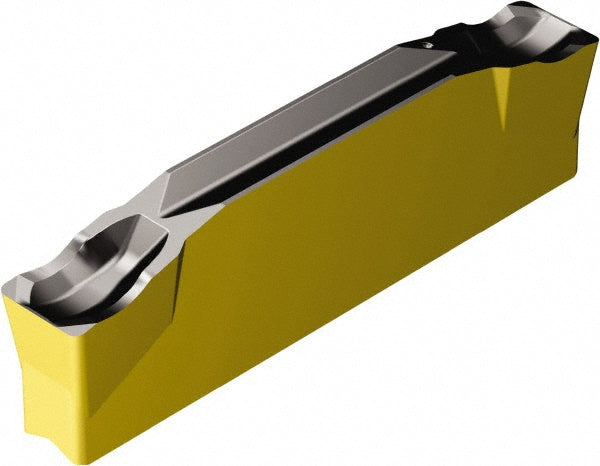

The Sandvik Coromant 6532086 is a solid carbide indexable insert, grade 4325, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCR
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0118
Cutting tool applicationGrooving; Parting; Profiling
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeH
Insert size codeH
Insert styleN123H2-...
Lead angle0
Lead angle directionNeutral
Manufacturers catalog number6532086
Manufacturer grade4325
Maximum depth of cut0.9331
Relief angle7.00
Width tolerance+0.004/-0 (Inch)
