Sandvik Coromant

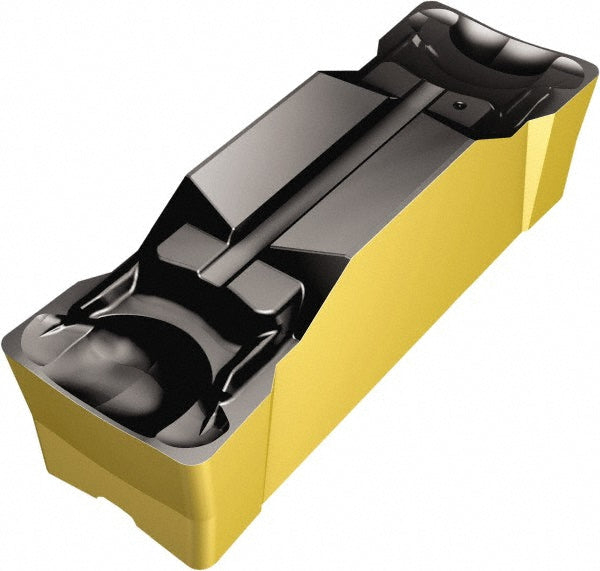

N123E2-0239-0002-GM 4325 Solid Carbide Insert, Grade 4325, TiCN/Al2O3/TiN - Sandvik Coromant 6532090
MFR# 6532090ISO/ANSI# N123E2-0239-0002-GM 4325Cat# N123E2-0239-0002-GM 4325Series CoroCut 1-2
$54.07List $68.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4325
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 6532090 is a N123E2-0239-0002-GM 4325 solid carbide indexable insert, grade 4325, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerGM
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0079
Cutting height0.1693
Cutting width0.0941
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeE
Insert sizeE
Insert styleN123
Insert thickness0.1693
Iso codeN123E2-0239-0002-GM 4325
Manufacturers catalog numberN123E2-0239-0002-GM 4325
Manufacturer grade4325
Maximum corner radius0.0118
Maximum depth of cut0.7244
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0039
Multi use toolYes
Overall length0.7650
Overall width0.0941
RakeNeutral
Rake angle7.00
