Sandvik Coromant
N123K2-0635-0003-GM 4325 Solid Carbide Insert, Grade 4325, TiCN/Al2O3/TiN - Sandvik Coromant 6532095
MFR# 6532095ISO/ANSI# N123K2-0635-0003-GM 4325Cat# N123K2-0635-0003-GM 4325Series CoroCut 1-2
$55.49List $71.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4325
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description

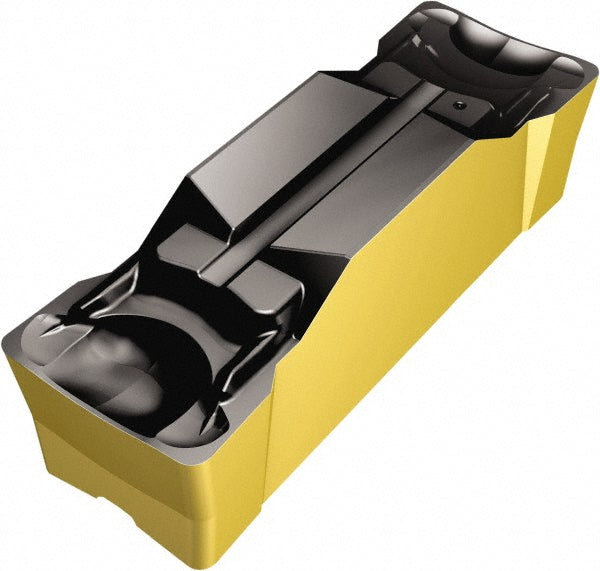

The Sandvik Coromant 6532095 is a N123K2-0635-0003-GM 4325 solid carbide indexable insert, grade 4325, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerGM
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0100
Cutting height0.1713
Cutting width in1/4
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeK
Insert sizeK
Insert styleN123
Insert thickness0.1713
Iso codeN123K2-0635-0003-GM 4325
Manufacturers catalog numberN123K2-0635-0003-GM 4325
Manufacturer grade4325
Maximum corner radius0.0139
Maximum depth of cut0.8898
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0061
Multi use toolYes
Overall length0.9602
Overall width in1/4
RakeNeutral
Rake angle7.00
