Sandvik Coromant

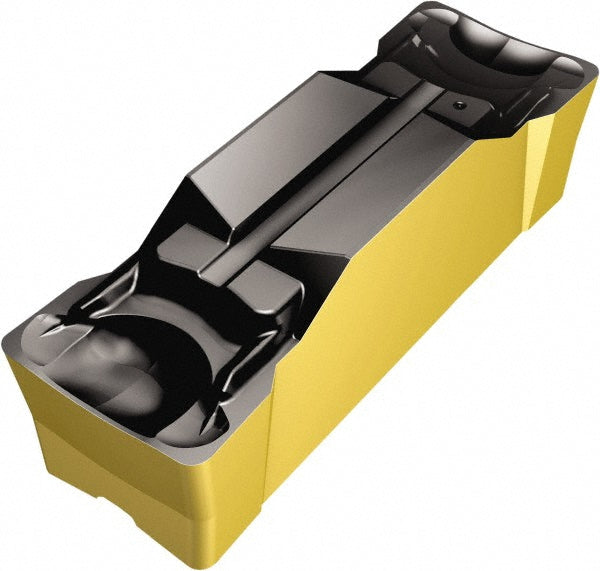

N123L2-0800-0005-GM 4325 Solid Carbide Insert, Grade 4325, TiCN/Al2O3/TiN - Sandvik Coromant 6532097
MFR# 6532097ISO/ANSI# N123L2-0800-0005-GM 4325Cat# N123L2-0800-0005-GM 4325Series CoroCut 1-2
$66.35List $85.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4325
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 6532097 is a N123L2-0800-0005-GM 4325 solid carbide indexable insert, grade 4325, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerGM
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0197
Cutting height0.2382
Cutting width0.3150
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeL
Insert sizeL
Insert styleN123
Insert thickness0.2382
Iso codeN123L2-0800-0005-GM 4325
Manufacturers catalog numberN123L2-0800-0005-GM 4325
Manufacturer grade4325
Maximum corner radius0.0236
Maximum depth of cut1.1181
Maximum depth of cut range1.0000+
Minimum corner radius0.0157
Multi use toolYes
Overall length1.1583
Overall width0.3150
RakeNeutral
Rake angle7.00
