Sandvik Coromant

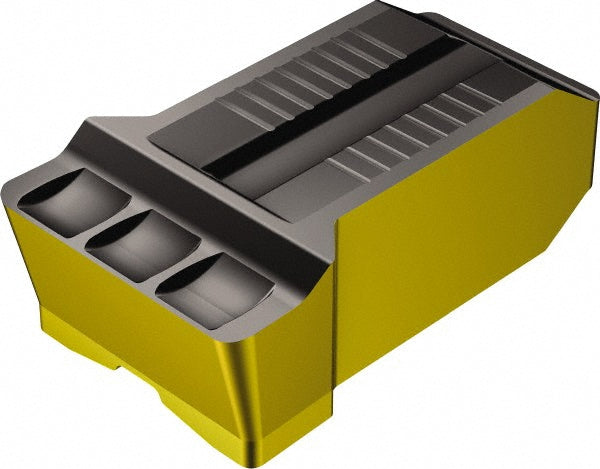

N123R1-1500-0010-GR 4325 Solid Carbide Insert, Grade 4325, TiCN/Al2O3/TiN - Sandvik Coromant 6532107
MFR# 6532107ISO/ANSI# N123R1-1500-0010-GR 4325Cat# N123R1-1500-0010-GR 4325Series CoroCut 1-2
$47.88List $61.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4325
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 6532107 is a N123R1-1500-0010-GR 4325 solid carbide indexable insert, grade 4325, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerGR
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0472
Cutting height0.2949
Cutting width0.5906
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeR
Insert sizeR
Insert styleN123
Insert thickness0.2949
Iso codeN123R1-1500-0010-GR 4325
Manufacturers catalog numberN123R1-1500-0010-GR 4325
Manufacturer grade4325
Maximum corner radius0.0512
Minimum corner radius0.0433
Multi use toolYes
Overall length in1
Overall width0.5906
RakeNeutral
Rake angle13.00
