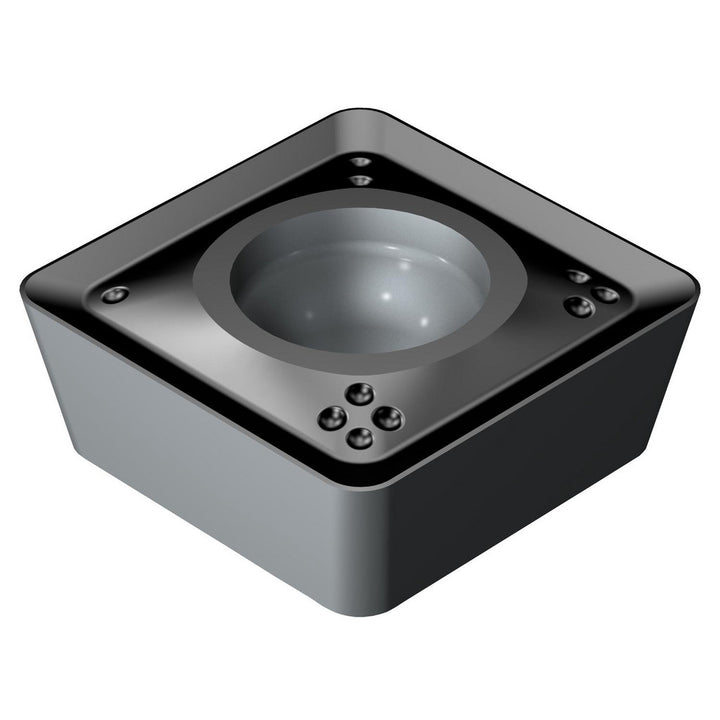

495-09T3M-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 6536296

Sandvik Coromant

495-09T3M-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 6536296

MFR# 6536296ISO/ANSI# 495-09T3M-MM 1040Cat# 495-09T3M-MM 1040Series 495

$26.70List $34.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1040
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 6536296 is a 495-09T3M-MM 1040 solid carbide indexable insert, grade 1040, TiAlN coated. Suited for steel, stainless steel.

Specifications

Ansi code495-09T3M-MM 1040
Chip breakerML
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility495
Cutting edge styleCorner Rounded
Hole diameter0.1339
Included angle degree90
Inscribed circle0.3543
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert style495
Iso code495-09T3M-MM 1040
Length0.3543
Length range0.3200 to 0.4000
Manufacturers catalog number495-09T3M-MM 1040
Manufacturer grade1040
Material applicationSteel; Stainless Steel
Material gradeM30
Maximum depth of cut0.2913
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1382
Thickness range0.1250 to 0.1500
Width0.3543
