Sandvik Coromant
Indexable Milling Cutters - Sandvik Coromant 6657475
MFR# 6657475Series Corocut QD
$1,284.87List $1,365.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.4
Description

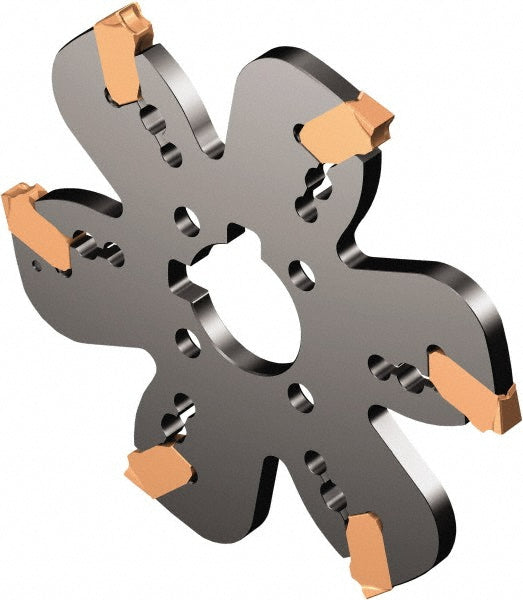

The Sandvik Coromant 6657475 indexable milling cutters. Series Corocut QD.
Specifications
Compatible insert styleQD-NG-0318-020E-PM
Complete insert compatibilityQD-NG-0318-020E-PM
Connection typeArbor
Cutter body width0.1098
Cutter diameter in4
Cutting directionRight Hand
Cutting width in1/8
Hole diameter in1
Hub diameter in1
Insert holding methodSpring Clamp
Maximum cutting width (mm)3.17
Maximum depth of cut1.0158
Maximum rpm5400
Minimum cutting width0.1250
Number of cutter inserts8
Number of teeth8
RadiusNo
Toolholder styleAQD.Y
Tooth typeStraight
Weldon flatNo
