Sandvik Coromant
BP-625030 235 Solid Carbide Insert, Grade 235, TiCN/TiN - Sandvik Coromant 6791127
MFR# 6791127ISO/ANSI# BP-625030 235Cat# BP-625030 235Series T-Max
$54.96List $70.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade235
MaterialSolid Carbide
CoatingTiCN/TiN
Description

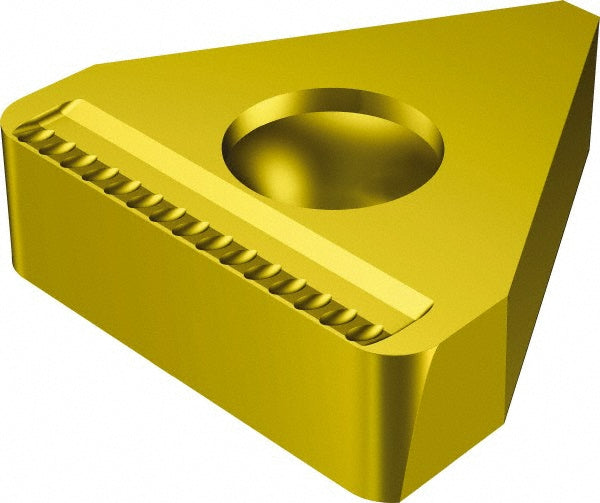

The Sandvik Coromant 6791127 is a BP-625030 235 solid carbide indexable insert, grade 235, TiCN/TiN coated.
Specifications
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.0299
Cutting height0.1880
Cutting width in5/8
Insert handNeutral
Insert materialSolid Carbide
Insert seat size0.5
Insert size0.5
Insert styleBP
Insert thickness0.1880
Iso codeBP-625030 235
Manufacturers catalog numberBP-625030 235
Manufacturer grade235
Maximum corner radius0.0339
Minimum corner radius0.0260
Multi use toolYes
Overall length0.7350
Overall width in5/8
RakeNeutral
Rake angle0.00
