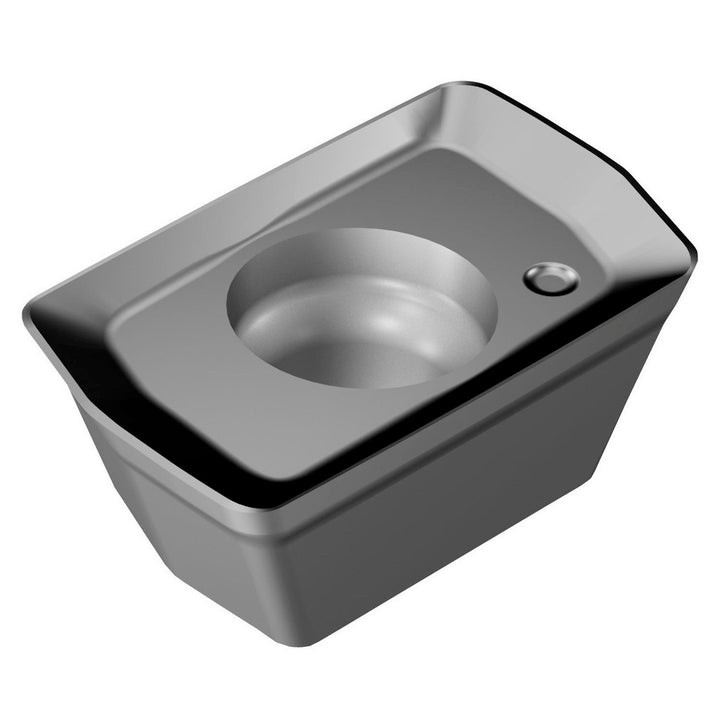

390R-070208E-MM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 6851182
MFR# 6851182ISO/ANSI# 390R-070208E-MM S30TCat# 390R-070208E-MM S30TSeries 390
$26.99List $34.02
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeS30T
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 6851182 is a 390R-070208E-MM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi code390R-070208E-MM S30T
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.0807
Included angle degree90
Inscribed circle0.1598
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070208
Insert style390
Iso code390R-070208E-MM S30T
Length0.2323
Length range0.0000 to 0.3200
Manufacturers catalog number390R-070208E-MM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.2283
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle30
Relief angle18.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.0945
Thickness range0.0000 to 0.1000
Width0.1598
