Sandvik Coromant

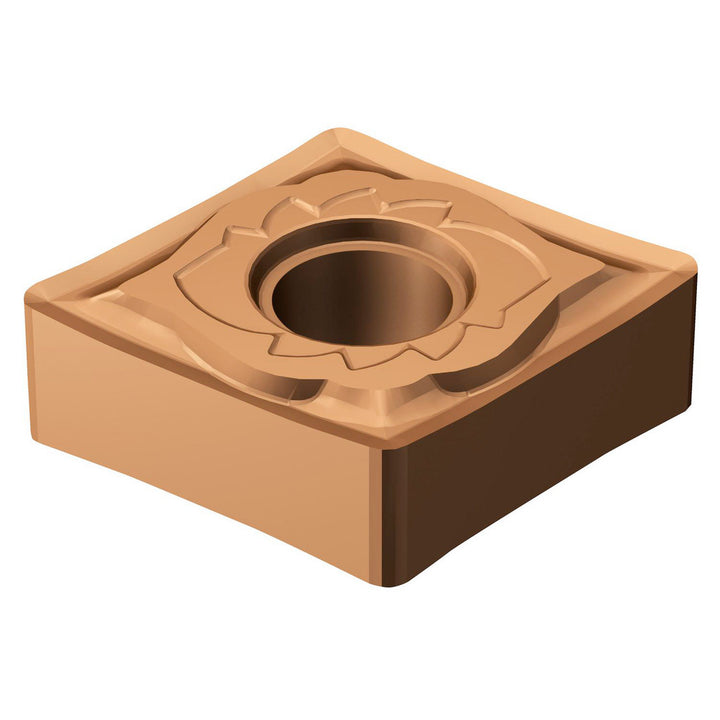

CNGG120402SGF1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 6851270
MFR# 6851270ISO/ANSI# CNGG120402SGF1125Series T-Max P
$25.92List $33.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6851270 is a CNGG120402SGF1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code43.5
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120402SGF1125
Length range0.5000 - 0.6000
Manufacturers catalog number6851270
Manufacturer grade1125
Maximum depth of cut0.4980
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
