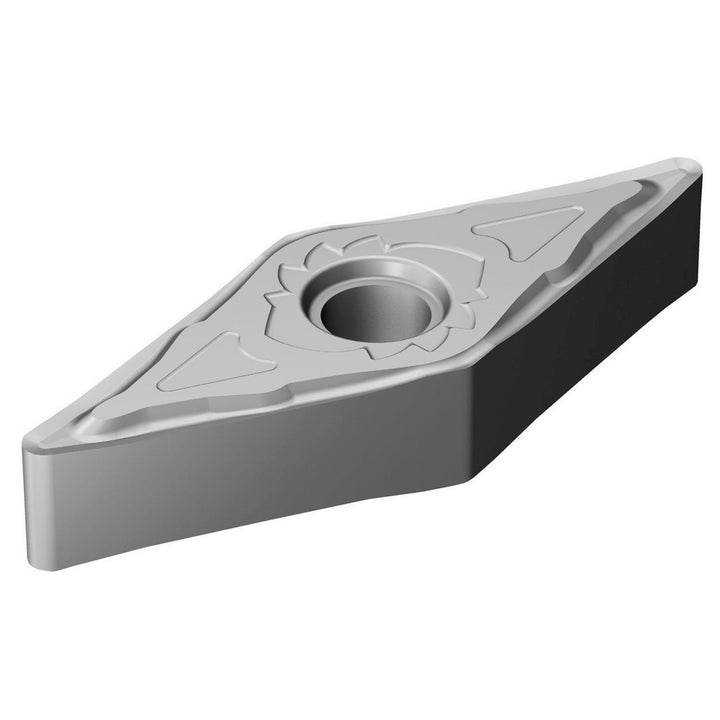

VNGG 16 04 02-SGF H13A Carbide Insert, Grade H13A - Sandvik Coromant 6851311

Sandvik Coromant

VNGG 16 04 02-SGF H13A Carbide Insert, Grade H13A - Sandvik Coromant 6851311

MFR# 6851311ISO/ANSI# VNGG 16 04 02-SGF H13ASeries T-Max P

$34.15List $43.05 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide

Description

The Sandvik Coromant 6851311 is a VNGG 16 04 02-SGF H13A carbide indexable insert, grade H13A. Suited for stainless steel.

Specifications

Chip breakerSGF
Clearance codeN
Corner radius0.0078
Cutting edge styleSharp
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code33.5
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG 16 04 02-SGF H13A
Manufacturer gradeH13A
Maximum depth of cut (mm)16.05
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
