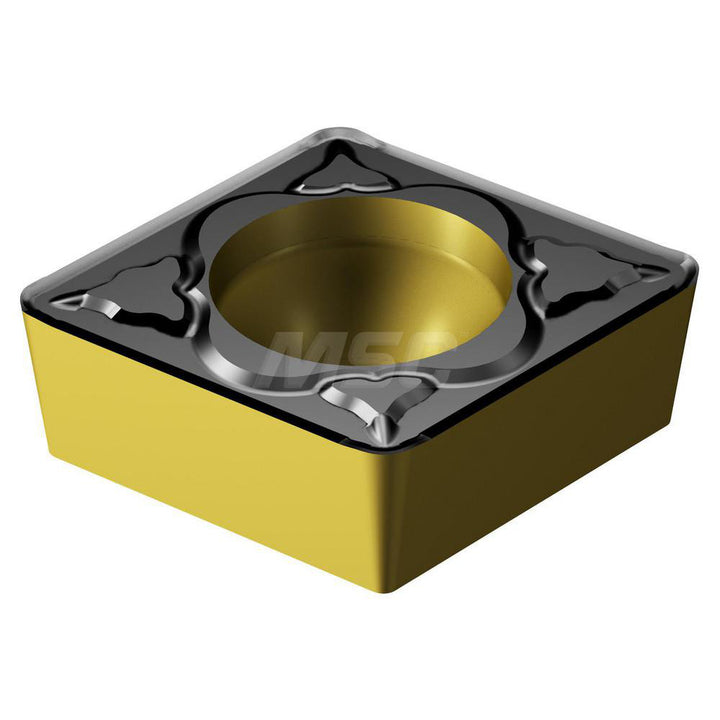

CCMT 06 02 04-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868231
MFR# 6868231ISO/ANSI# CCMT 06 02 04-KM 3225Series CoroTurn 107
$16.25List $20.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868231 is a CCMT 06 02 04-KM 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleRounded
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 04-KM 3225
Manufacturer grade3225
Maximum depth of cut (mm)6.05
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
