Sandvik Coromant

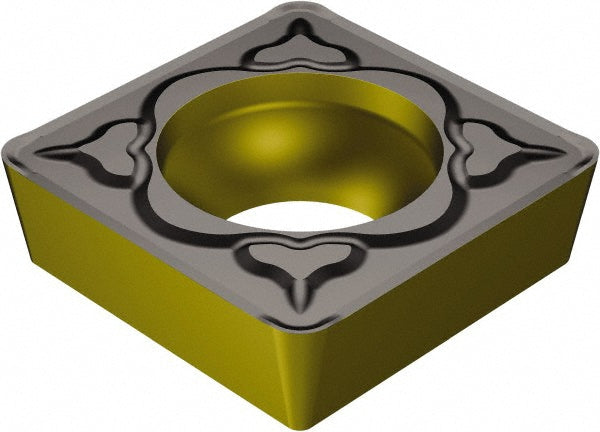

SCMT 09 T3 04-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868272
MFR# 6868272ISO/ANSI# SCMT 09 T3 04-KM 3225Series CoroTurn 107
$16.63List $21.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868272 is a SCMT 09 T3 04-KM 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeC
Coating finishTiCN
Corner radius in1/64
Hole diameter0.1732
Included angle90
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeSquare
Insert size code32.51
Insert styleSCMT
Insert thickness in5/32
Iso codeSCMT 09 T3 04-KM 3225
Manufacturers catalog number6868272
Manufacturer grade3225
Maximum depth of cut0.3594
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
