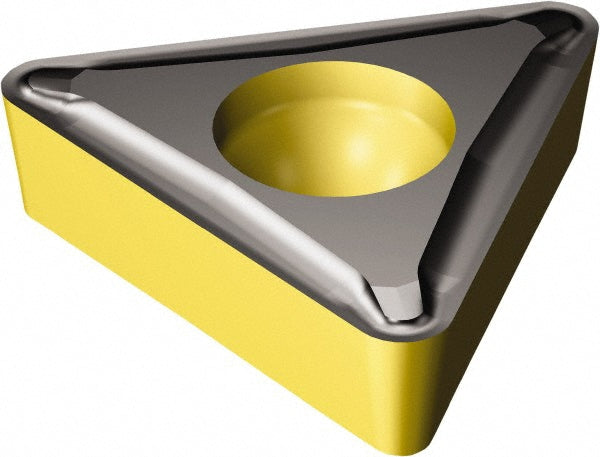

TCMT 11 02 04-UF 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868286
MFR# 6868286ISO/ANSI# TCMT 11 02 04-UF 3225Series CoroTurn 107
$15.32List $19.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868286 is a TCMT 11 02 04-UF 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.
Specifications
Chip breakerUF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleRounded
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 11 02 04-UF 3225
Manufacturer grade3225
Maximum depth of cut (mm)10.34
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
