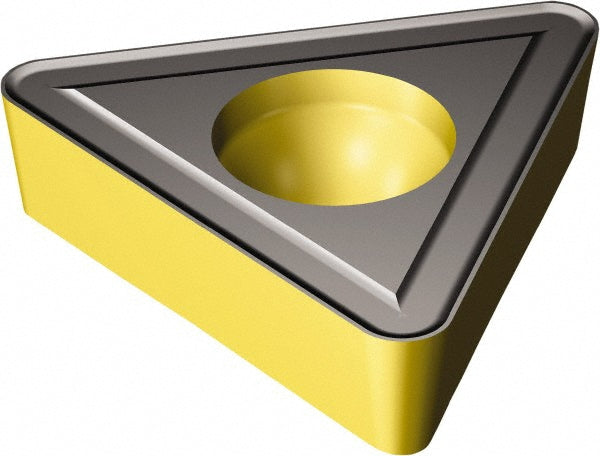

TCMT 11 02 08-UR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868287

Sandvik Coromant

TCMT 11 02 08-UR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868287

MFR# 6868287ISO/ANSI# TCMT110208Series CoroTurn 107

$16.25List $20.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
Grade3225
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 6868287 is a TCMT 11 02 08-UR 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeTCMT21.52
Ansi size code21.52
Chip breakerUR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.52
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 11 02 08-UR 3225
Iso insert codeTCMT110208
Iso size code110208
Manufacturer grade3225
Maximum depth of cut (mm)9.94
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
