Sandvik Coromant

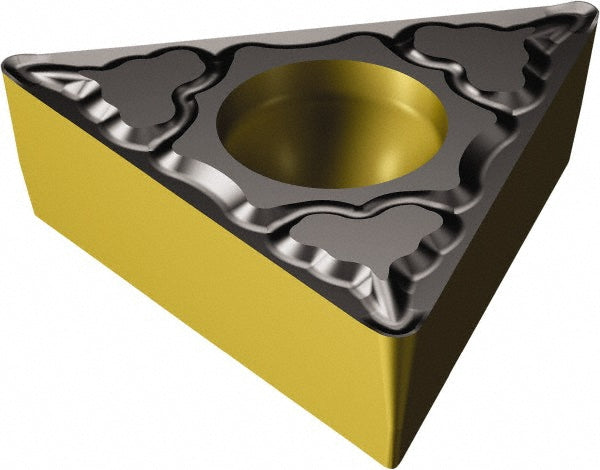

TCMT 11 03 04-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868290
MFR# 6868290ISO/ANSI# TCMT 11 03 04-KM 3225Series CoroTurn 107
$16.25List $20.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868290 is a TCMT 11 03 04-KM 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleRounded
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 04-KM 3225
Manufacturer grade3225
Maximum depth of cut (mm)10.34
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
