Sandvik Coromant

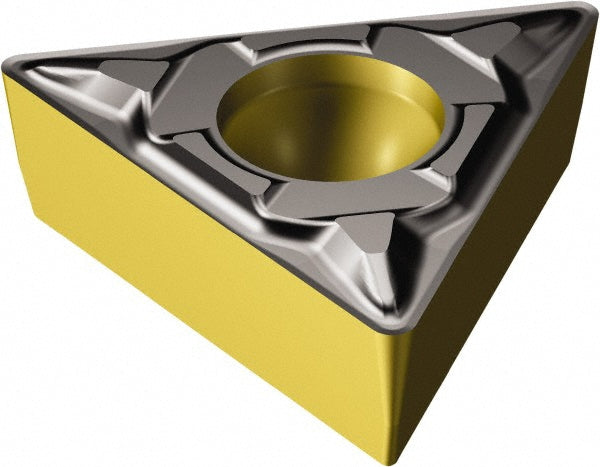

TCMT 06 T1 02-KF 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 6868343
MFR# 6868343ISO/ANSI# TCMT 06 T1 02-KF 3210Series CoroTurn 107
$15.03List $19.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868343 is a TCMT 06 T1 02-KF 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
ChipbreakerKF
Coating finishTiCN
Coating processCVD
Corner radius0.0079
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.20
Insert styleTCMT
Iso codeTCMT 06 T1 02-KF 3210
Manufacturer grade3210
Maximum depth of cut (mm)6.42
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle7
