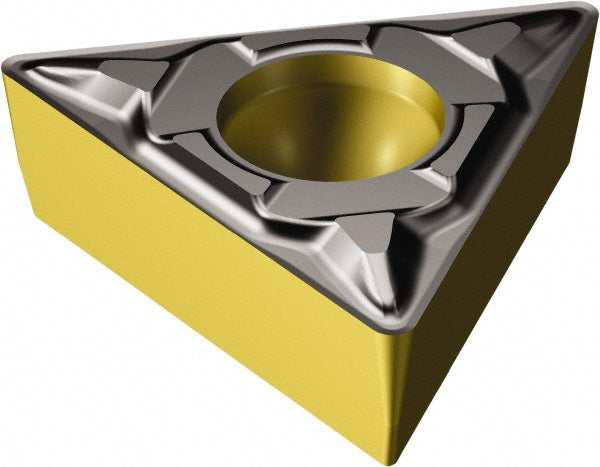

TPMT 06 T1 04-KF 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868375

Sandvik Coromant

TPMT 06 T1 04-KF 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868375

MFR# 6868375ISO/ANSI# TPMT06T104Series CoroTurn 111

$14.32List $18.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/32
ShapeT - Triangle
Grade3225
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 6868375 is a TPMT 06 T1 04-KF 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeTPMT1.21.21
Ansi size code1.21.21
Chip breakerKF
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeT - Triangle
Insert size code1.21.21
Insert styleTPMT
Insert thickness in5/64
Iso codeTPMT 06 T1 04-KF 3225
Iso insert codeTPMT06T104
Iso size code06T104
Manufacturer grade3225
Maximum depth of cut (mm)6.20
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle11
Side clearancePositive
Tolerance codeM
Wiper edgeNo
