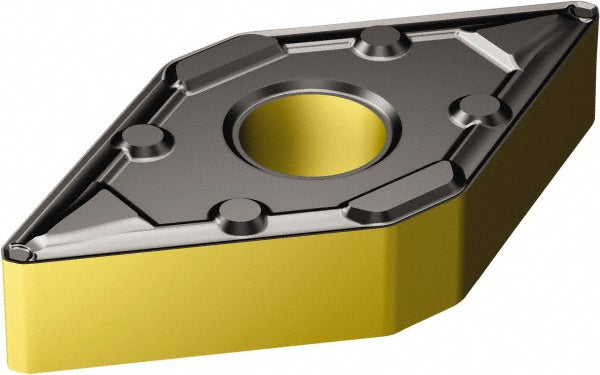

DNMX 15 04 08-WF 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868430
MFR# 6868430ISO/ANSI# DNMX150408Series T-Max P
$27.79List $35.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868430 is a DNMX 15 04 08-WF 3225 carbide indexable insert, grade 3225, TiCN coated.
Specifications
Ansi insert codeDNMX432
Ansi size code432
Chip breakerWF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 15 04 08-WF 3225
Iso insert codeDNMX150408
Iso size code150408
Lead angle93
Manufacturer grade3225
Maximum depth of cut (mm)14.70
Relief angle0
Side clearanceNegative
Tolerance codeM
