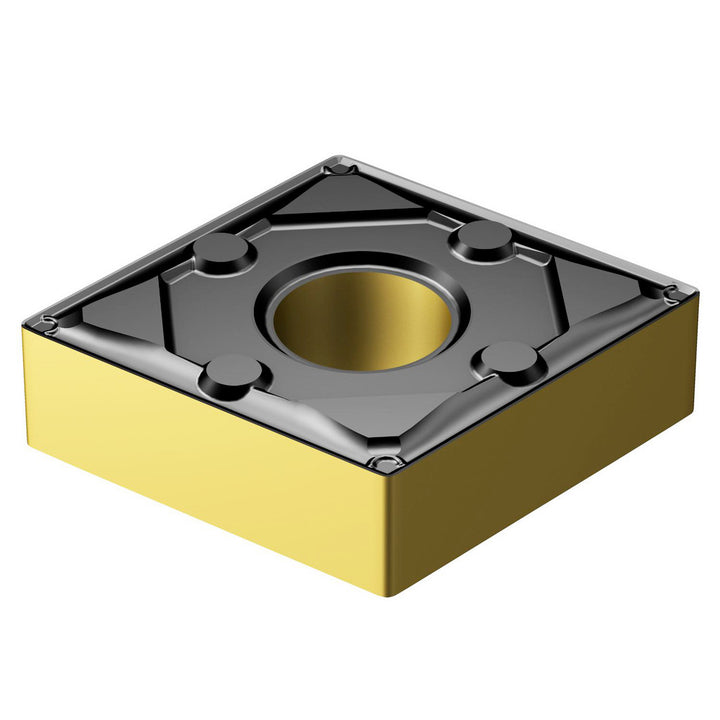

CNMG 12 04 08-WF 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 6868443
MFR# 6868443ISO/ANSI# CNMG 12 04 08-WF 3210Series T-Max P
$20.62List $26.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868443 is a CNMG 12 04 08-WF 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerWF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-WF 3210
Lead angle95
Manufacturer grade3210
Maximum depth of cut (mm)12.10
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeYes
