Sandvik Coromant

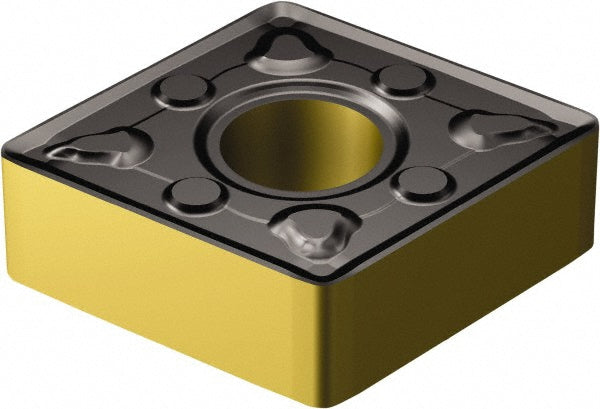

CNMG 12 04 08-WMX 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868459
MFR# 6868459ISO/ANSI# CNMG 12 04 08-WMX 3225Series T-Max P
$25.29List $31.87
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868459 is a CNMG 12 04 08-WMX 3225 carbide indexable insert, grade 3225, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-WMX 3225
Lead angle95
Manufacturer grade3225
Maximum depth of cut (mm)12.10
Relief angle0
Tolerance codeM
