Sandvik Coromant

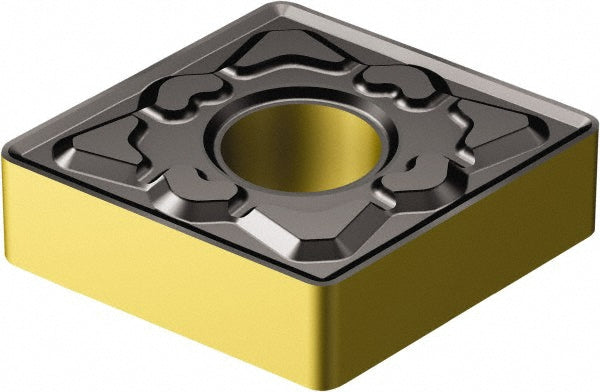

CNMG 12 04 08-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868506
MFR# 6868506ISO/ANSI# CNMG 12 04 08-KM 3225Series T-Max P
$20.91List $26.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868506 is a CNMG 12 04 08-KM 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-KM 3225
Length range0.5000 - 0.6000
Manufacturers catalog number6868506
Manufacturer grade3225
Maximum depth of cut0.4764
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
