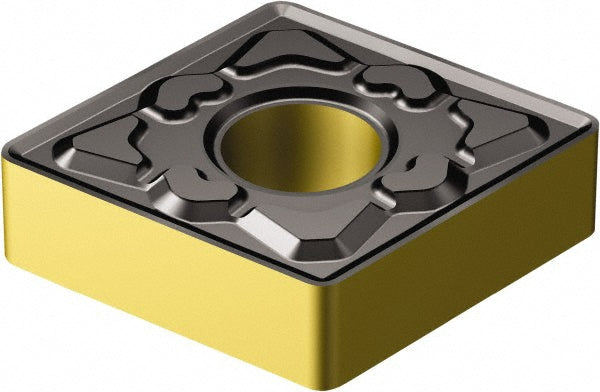

CNMG 12 04 12-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868517

Sandvik Coromant

CNMG 12 04 12-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868517

MFR# 6868517ISO/ANSI# CNMG120412Series T-Max P

$19.33List $24.79 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade3225
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 6868517 is a CNMG 12 04 12-KM 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeCNMG433
Ansi size code433
Chip breakerKM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 12-KM 3225
Iso insert codeCNMG120412
Iso size code120412
Manufacturer grade3225
Maximum depth of cut (mm)11.70
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
