Sandvik Coromant

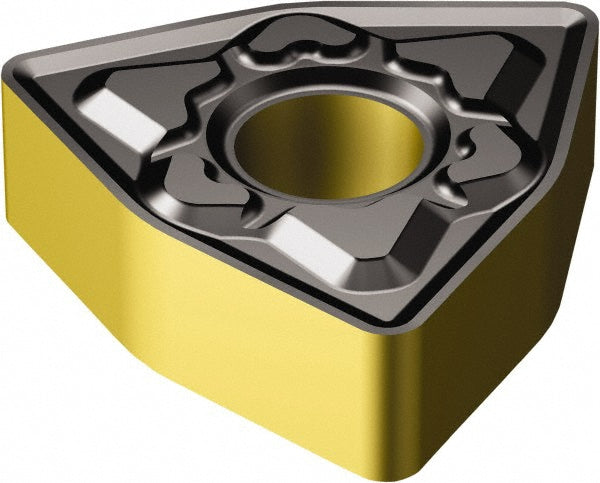

WNMG 08 04 08-KM 3225 Carbide Insert, Grade 3225, Al2O3 - Sandvik Coromant 6868545
MFR# 6868545ISO/ANSI# WNMG 08 04 08-KM 3225Series T-Max P
$21.18List $27.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade3225
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 6868545 is a WNMG 08 04 08-KM 3225 carbide indexable insert, grade 3225, Al2O3 coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-KM 3225
Manufacturer grade3225
Number of cutting edges6
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
