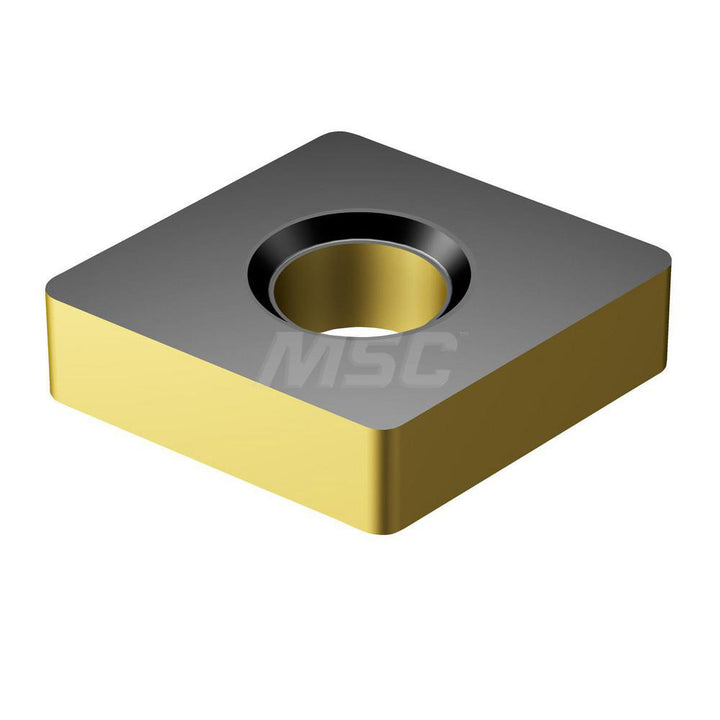

CNMA 16 06 12-KR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868582

Sandvik Coromant

CNMA 16 06 12-KR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868582

MFR# 6868582ISO/ANSI# CNMA160612Series T-Max P

$27.28List $34.99 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade3225
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 6868582 is a CNMA 16 06 12-KR 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeCNMA543
Ansi size code543
Chip breakerKR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMA
Insert thickness in1/4
Iso codeCNMA 16 06 12-KR 3225
Iso insert codeCNMA160612
Iso size code160612
Manufacturer grade3225
Maximum depth of cut (mm)14.92
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
