Sandvik Coromant

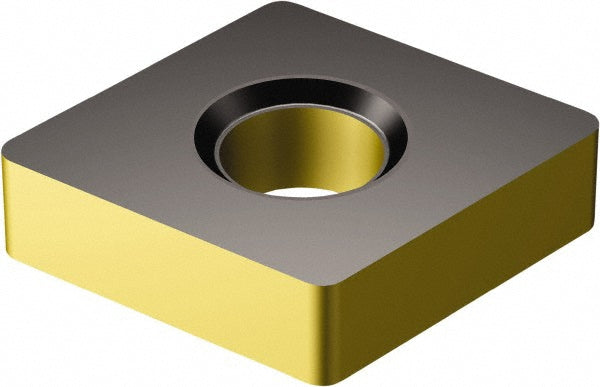

CNMA 19 06 12-KR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868585
MFR# 6868585ISO/ANSI# CNMA190612Series T-Max P
$42.39List $54.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868585 is a CNMA 19 06 12-KR 3225 carbide indexable insert, grade 3225, TiCN coated.
Specifications
Ansi insert codeCNMA643
Ansi size code643
Chip breakerKR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMA
Insert thickness in1/4
Iso codeCNMA 19 06 12-KR 3225
Iso insert codeCNMA190612
Iso size code190612
Manufacturer grade3225
Maximum depth of cut (mm)18.14
Relief angle0
Side clearanceNegative
Tolerance codeM
