Sandvik Coromant

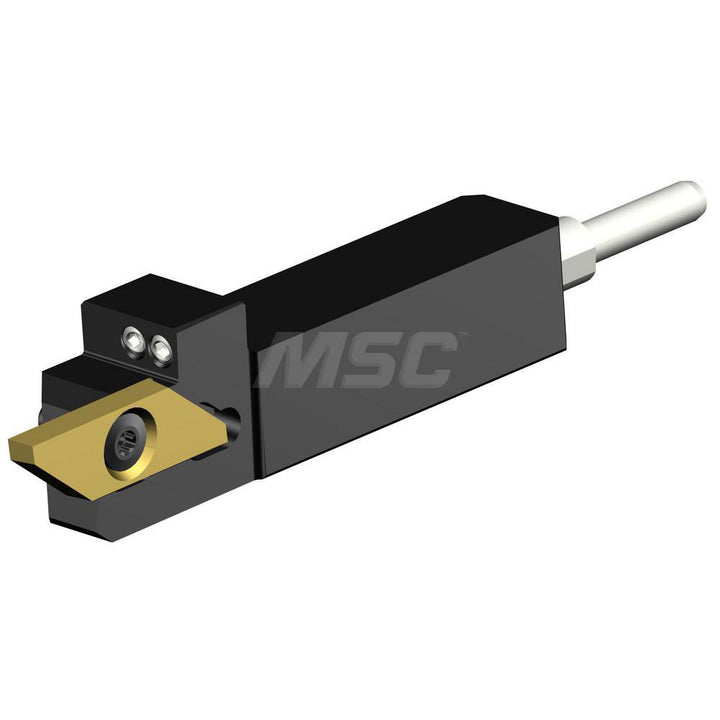

Indexable Grooving - Sandvik Coromant 6900611
MFR# 6900611Series Coro Cut XS
$446.94List $466.56
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6900611 indexable grooving. Series Coro Cut XS.
Specifications
Back of bar to cutting edge2.7559
Center to cutting edge0.5000
Compatible insert size codeMACR 3 200
Complete insert compatibilityMACR 3 200-N
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.1024
Insert compatibilityMACR 3 200-N
Insert holding methodClamp; Screw
Insert seat size3
Internal or externalExternal
Maximum bore depth1.1024
Maximum depth of cut0.3346
Maximum overhang in1.1023
Multi use toolYes
Overall length2.4567
Shank height0.5000
Shank width0.5000
Toolholder materialSteel
Toolholder styleQS-SMALR/L..HP
Toolholder typeNon-Face Grooving
