Sandvik Coromant

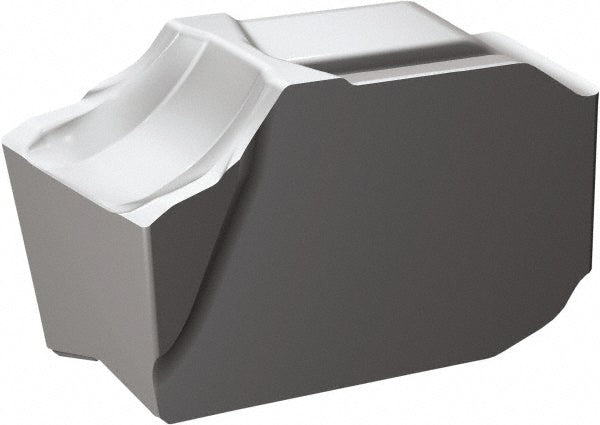

QD-NE-0200-010E-NL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 6917030
MFR# 6917030ISO/ANSI# QD-NE-0200-010E-NL H13ASeries CoroMill QD
$24.13List $30.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 6917030 is a QD-NE-0200-010E-NL H13A solid carbide indexable insert, grade H13A.
Specifications
Chip breakerNL
Cutting height0.1220
Cutting width0.0787
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeE
Insert sizeE
Insert styleQD-N
Insert thickness0.1220
Iso codeQD-NE-0200-010E-NL H13A
Manufacturer gradeH13A
Overall length0.3937
Rake angle7.00
