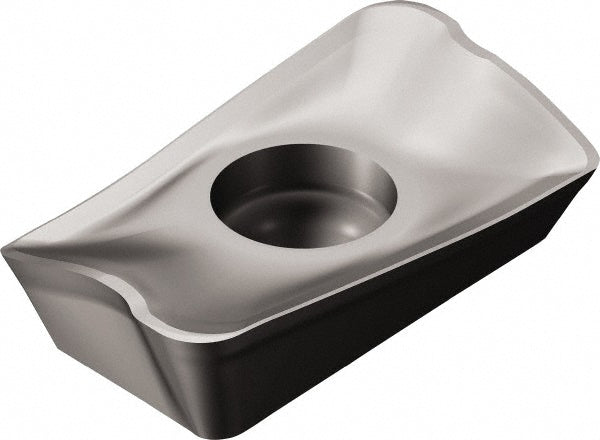

R390-17 04 64E-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6971862

Sandvik Coromant

R390-17 04 64E-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6971862

MFR# 6971862ISO/ANSI# R390-17 04 64E-PM 1130Cat# R390-17 04 64E-PM 1130Series R390

$35.52List $45.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 6971862 is a R390-17 04 64E-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR390-17 04 64E-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170464
Insert styleR390
Iso codeR390-17 04 64E-PM 1130
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 64E-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.5906
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle17
Relief angle19.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
