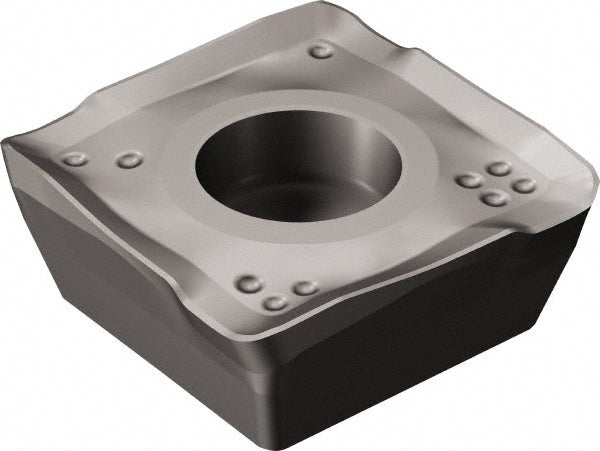

490R-08T308M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6971887

Sandvik Coromant

490R-08T308M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6971887

MFR# 6971887ISO/ANSI# 490R-08T308M-PM 1130Cat# 490R-08T308M-PM 1130Series 490

$32.45List $33.15 Save 2%
144 in stock, ships in 1-3 days. Stock at supplier warehouse.

Stock updated Oct 27. We confirm every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 6971887 is a 490R-08T308M-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, superalloys & titanium, hard material.

Specifications

Ansi code490R-08T308M-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.3346
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size08
Insert size code08T308
Insert style490
Iso code490R-08T308M-PM 1130
Length0.3346
Length range0.3200 to 0.4000
Manufacturers catalog number490R-08T308M-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.2165
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
RakePositive
Rake angle26
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1299
Thickness range0.1250 to 0.1500
Width0.3346
