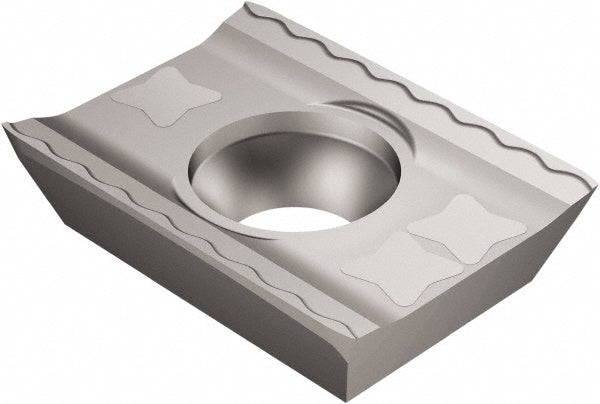

LDHT 19 04 00-PL 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6971934

Sandvik Coromant

LDHT 19 04 00-PL 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6971934

MFR# 6971934ISO/ANSI# LDHT 19 04 00-PL 1130Cat# LDHT 19 04 00-PL 1130Series LDHT

$40.08List $51.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 6971934 is a LDHT 19 04 00-PL 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeLDHT 19 04 00-PL 1130
Chip breakerPL
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/128
Cutter series compatibilityR215.64; RA215.64
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.5420
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size19
Insert size code190400
Insert styleLDHT
Iso codeLDHT 19 04 00-PL 1130
Length0.7520
Length range0.7000 to 0.9000
Manufacturers catalog numberLDHT 19 04 00-PL 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.7520
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.5420
