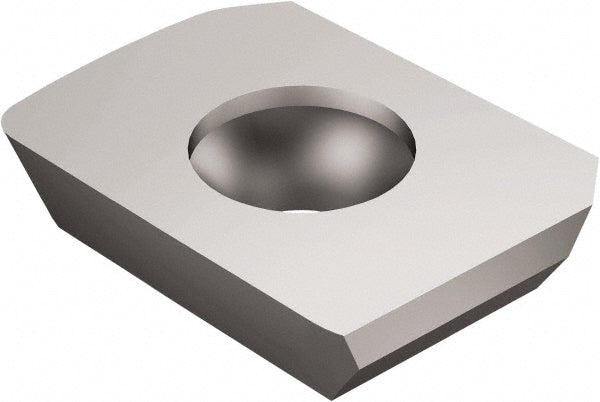

LEHT 18 04 16R-PL2 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6971936

Sandvik Coromant

LEHT 18 04 16R-PL2 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6971936

MFR# 6971936ISO/ANSI# LEHT 18 04 16R-PL2 1130Cat# LEHT 18 04 16R-PL2 1130Series LEHT

$52.96List $67.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 6971936 is a LEHT 18 04 16R-PL2 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeLEHT 18 04 16R-PL2 1130
Chip breakerPL
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityR215.64; RA215.64
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.5400
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size18
Insert size code180416
Insert styleLEHT
Iso codeLEHT 18 04 16R-PL2 1130
Length0.7480
Length range0.7000 to 0.9000
Manufacturers catalog numberLEHT 18 04 16R-PL2 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.7480
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.5400
