Sandvik Coromant

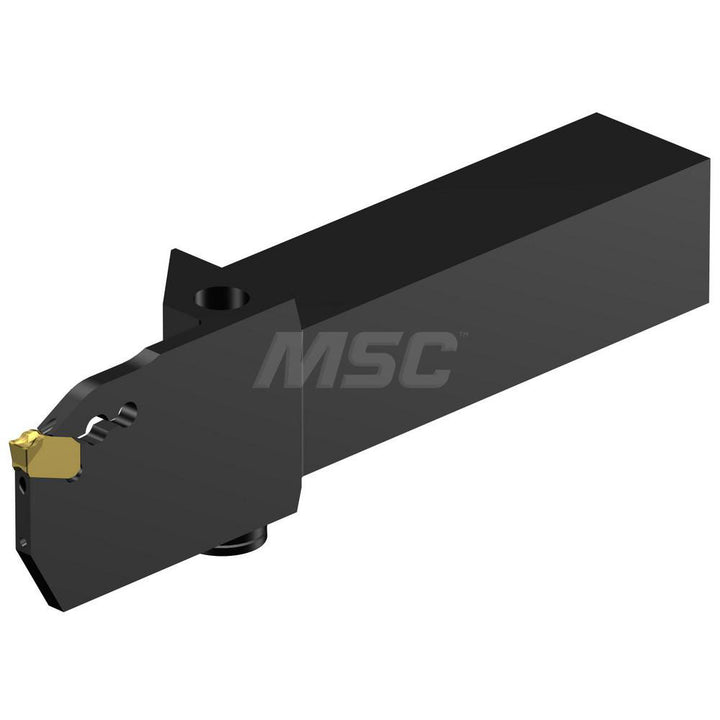

Indexable Grooving - Sandvik Coromant 6976227
MFR# 6976227Series Coro Cut QD
$412.73List $438.48
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6976227 indexable grooving. Series Coro Cut QD.
Specifications
Back of bar to cutting edge6.0000
Compatible insert size codeQD-NH-0400
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head height in1
Insert compatibilityQD-NH
Insert holding methodClamp
Insert seat sizeH
Internal or externalExternal
Maximum depth of cut1.6000
Maximum groove width1.0000
Maximum overhang in2.5196
Multi use toolYes
Overall length1.0000
Shank height1.0000
Shank width1.0000
Toolholder styleQD-RF
Toolholder typeNon-Face Grooving
