Sandvik Coromant
CCMT 06 02 04-PM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080693
MFR# 7080693ISO/ANSI# CCMT 06 02 04-PM 4335Series CoroTurn 107
$13.76List $17.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4335
MaterialCarbide
CoatingTiCN
Description

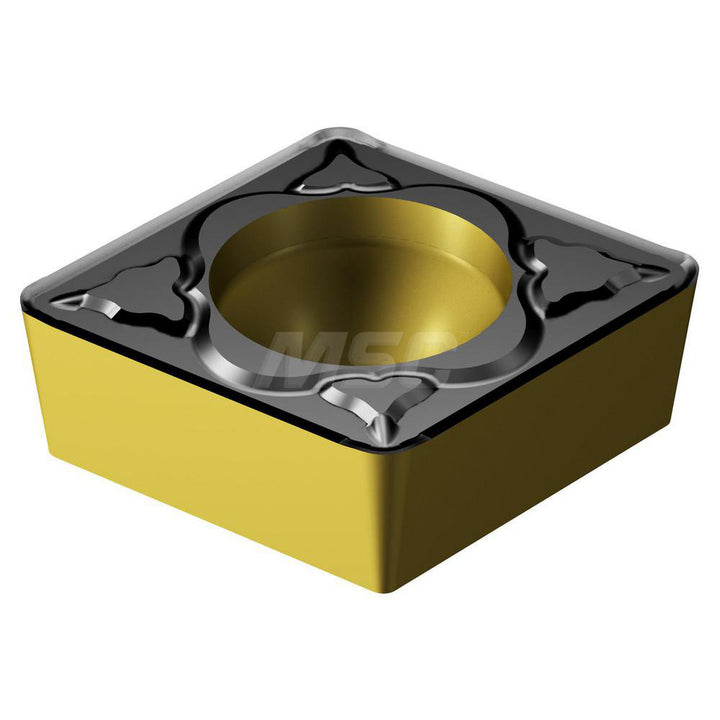

The Sandvik Coromant 7080693 is a CCMT 06 02 04-PM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 04-PM 4335
Manufacturer grade4335
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
Wiper edgeNo
