Sandvik Coromant

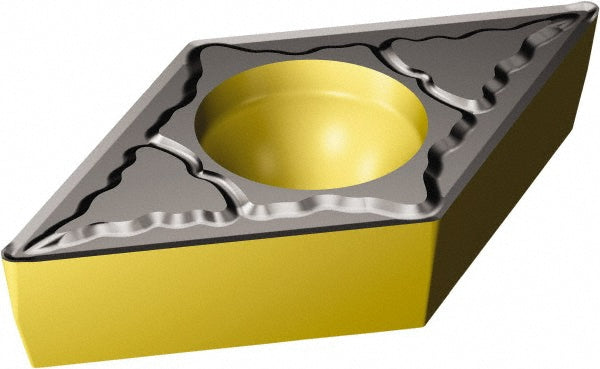

DCMT 11 T3 04-PM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080701
MFR# 7080701ISO/ANSI# DCMT11T304Series CoroTurn 107
$18.44List $23.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080701 is a DCMT 11 T3 04-PM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeDCMT32.51
Ansi size code32.51
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 04-PM 4335
Iso insert codeDCMT11T304
Iso size code11T304
Manufacturer grade4335
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
