Sandvik Coromant

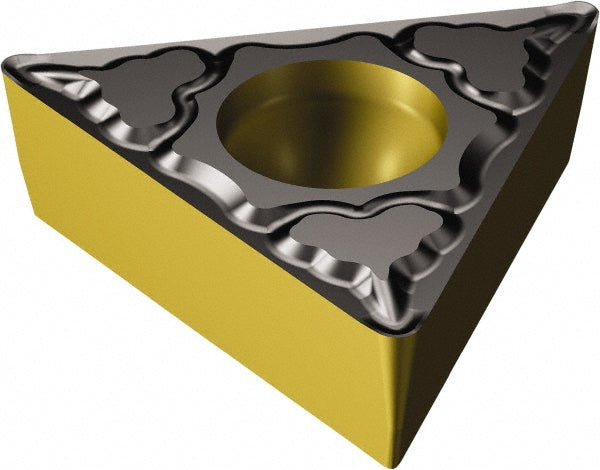

TCMT 11 03 04-PM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080712
MFR# 7080712ISO/ANSI# TCMT 11 03 04-PM 4335Series CoroTurn 107
$16.84List $21.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080712 is a TCMT 11 03 04-PM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 04-PM 4335
Manufacturer grade4335
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
Wiper edgeNo
