Sandvik Coromant

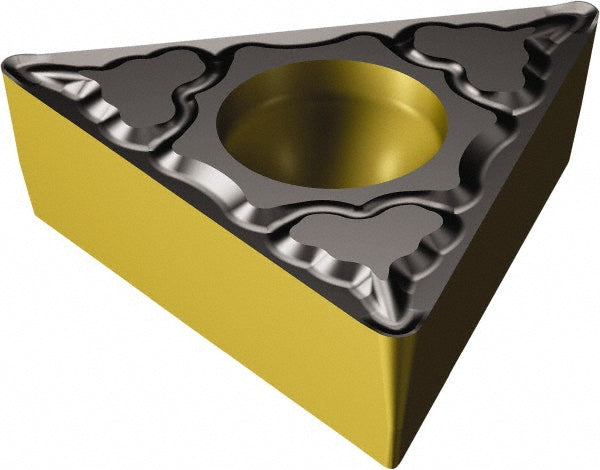

TCMT 16 T3 08-PM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080716
MFR# 7080716ISO/ANSI# TCMT 16 T3 08-PM 4335Series CoroTurn 107
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080716 is a TCMT 16 T3 08-PM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 08-PM 4335
Manufacturer grade4335
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
Wiper edgeNo
