Sandvik Coromant
CCMT 09 T3 12-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080725
MFR# 7080725ISO/ANSI# CCMT09T312Series CoroTurn 107
$17.27List $22.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade4335
MaterialCarbide
CoatingTiCN
Description

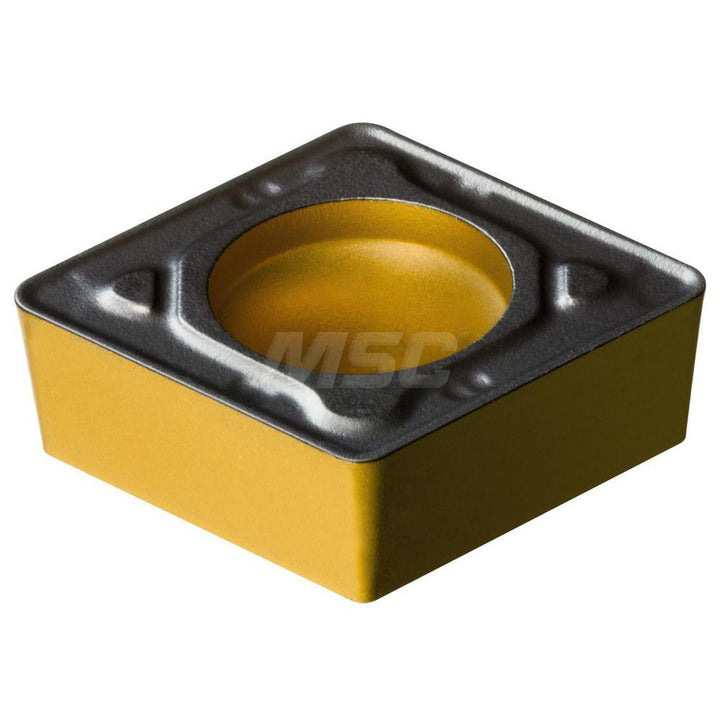

The Sandvik Coromant 7080725 is a CCMT 09 T3 12-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT32.53
Ansi size code32.53
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.53
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 12-PR 4335
Iso insert codeCCMT09T312
Iso size code09T312
Manufacturer grade4335
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
