Sandvik Coromant

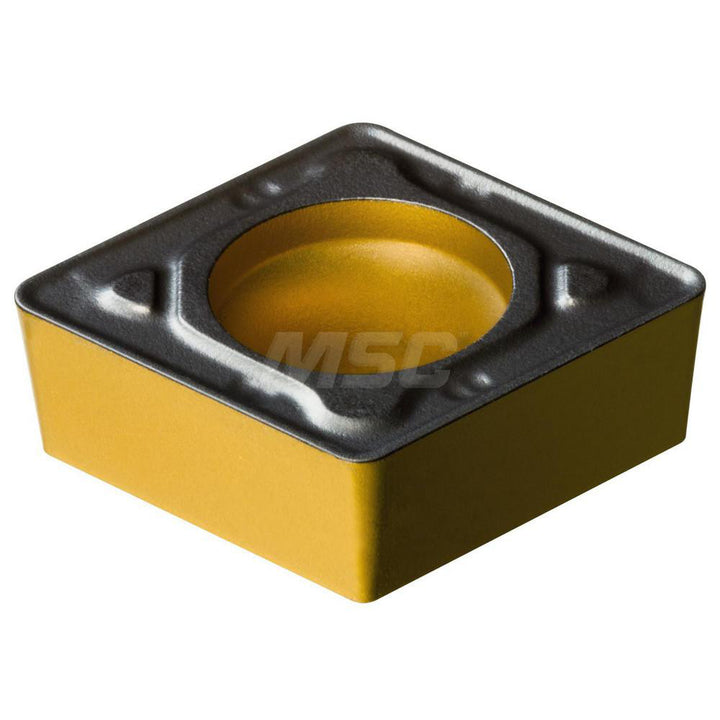

CCMT 12 04 08-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080726
MFR# 7080726ISO/ANSI# CCMT120408Series CoroTurn 107
$22.69List $28.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080726 is a CCMT 12 04 08-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT432
Ansi size code432
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 08-PR 4335
Iso insert codeCCMT120408
Iso size code120408
Manufacturer grade4335
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
